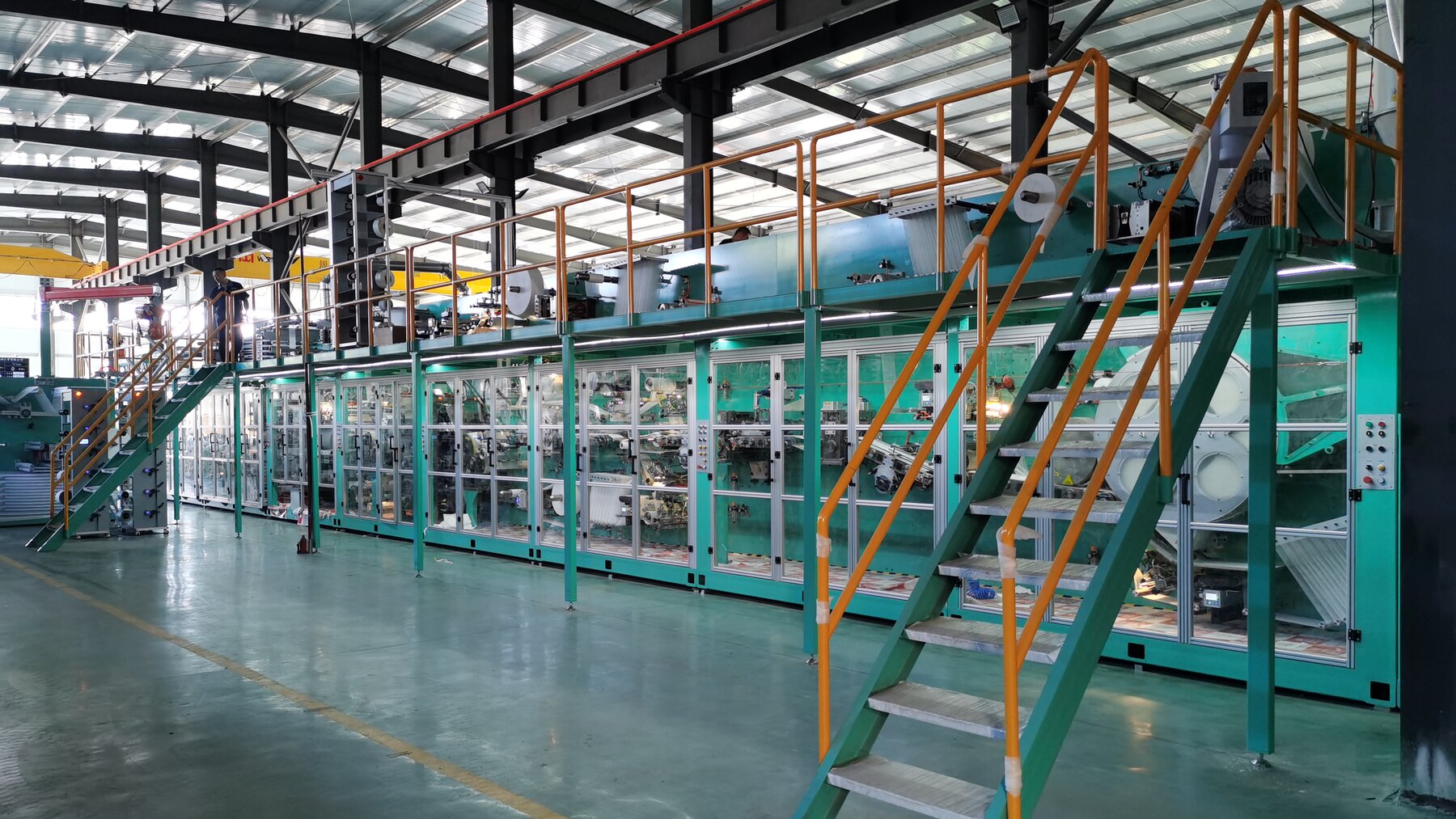

On-site footage · pull-up line, operator platform

Your product. Your production line.

Four full-servo reference configurations for adult pull-ups, tape-on diapers, underpads and menstrual pants. We shape a project-specific proposal with the manufacturer around your product, target output and workshop.

The lines

Four reference configurations.

Start with the line closest to your product. Speeds and envelopes are planning references — the final scope is agreed for your project.

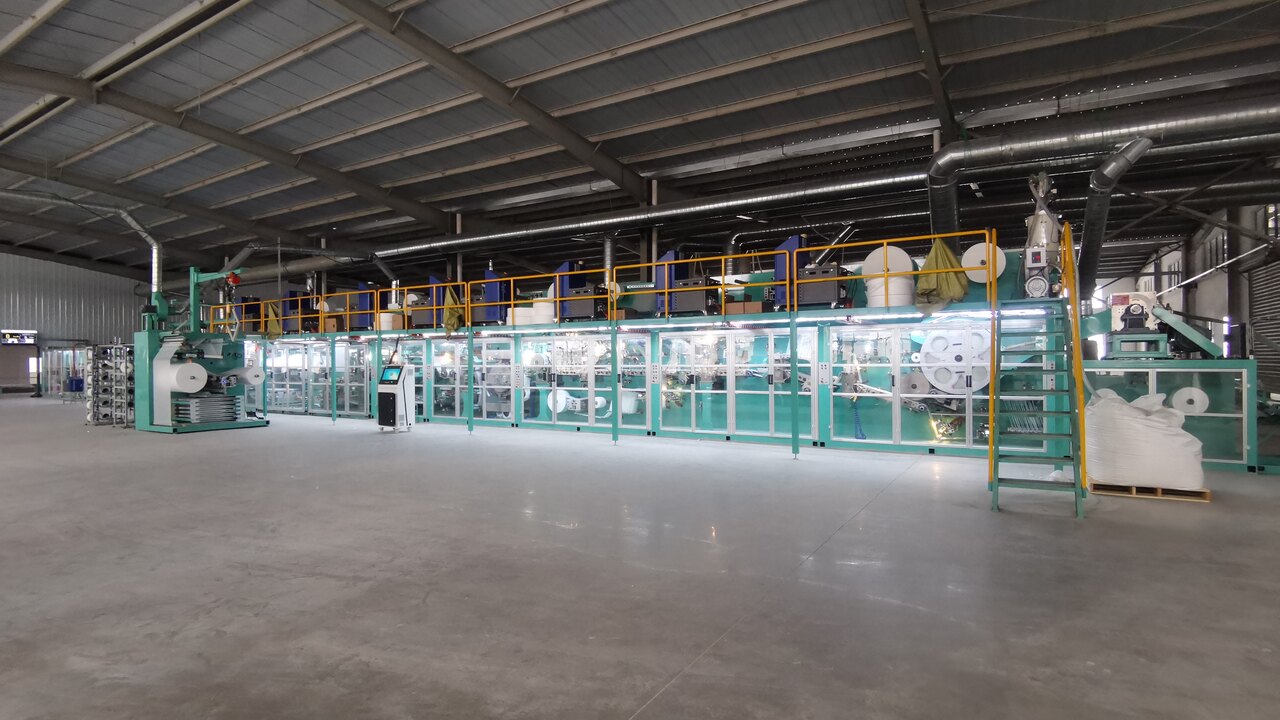

GR-CLK450-SF4 adult pull-up diaper lineFULL SERVO

GR-CLK450-SF4

Adult pull-up diaper line

Full-servo converting for adult pull-up diapers, with product-specific size settings and optional automatic stacking.

Design speed
450pcs/min
Stable reference
400pcs/min
Installed capacity
≈468kW
Envelope · weight
42×9×5m · ≈90 t
Full line details
GR-CK300-SF tape-on adult diaper lineFULL SERVO

GR-CK300-SF

Tape-on adult diaper line

Full-servo production for tape-on adult diapers, configured around the approved core structure, fit and fastening system.

Design speed
300pcs/min
Stable reference
260–280pcs/min
Installed capacity
≈450kW
Envelope · weight
37×9×5.5m · ≈90 t
Full line details

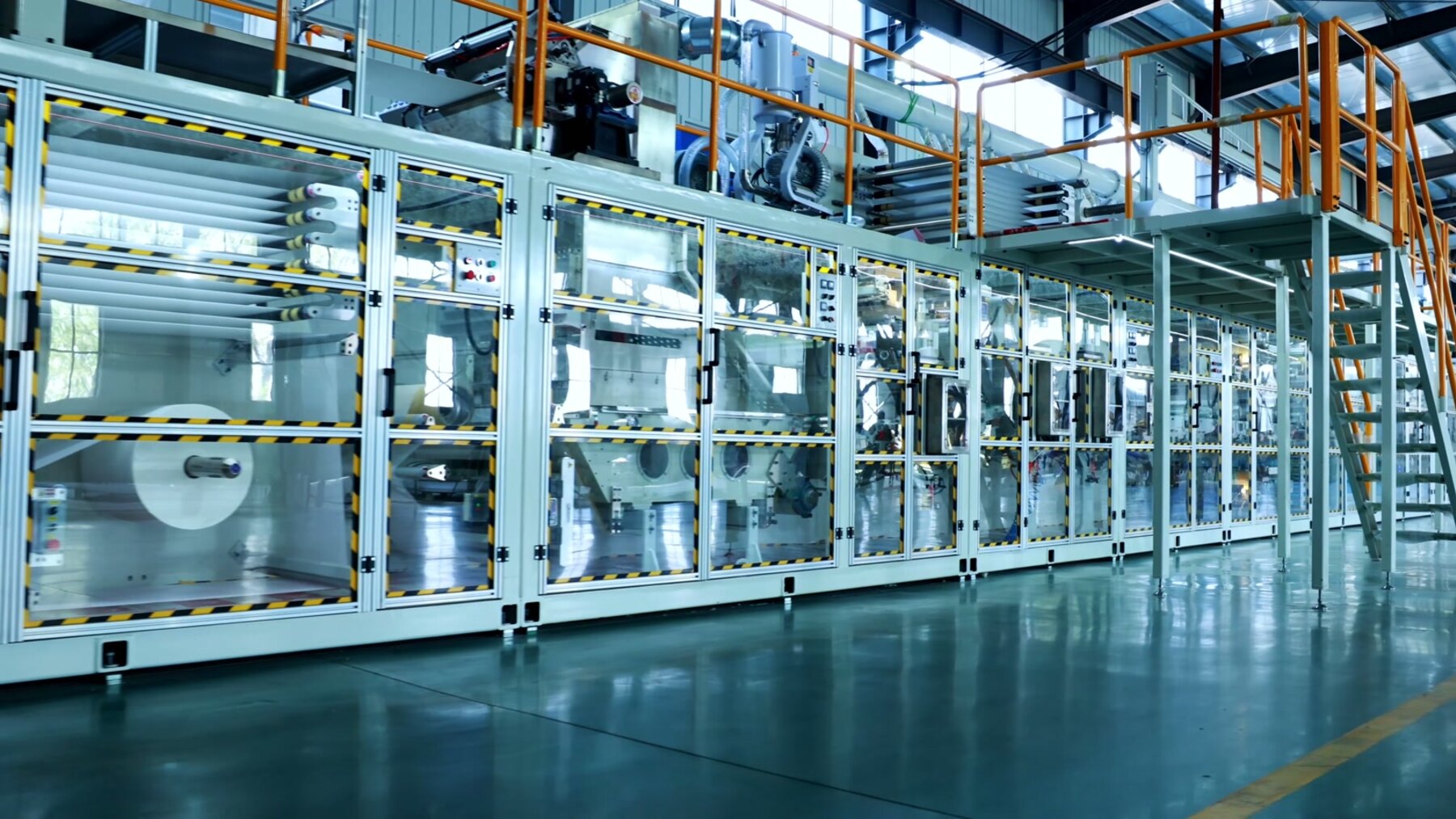

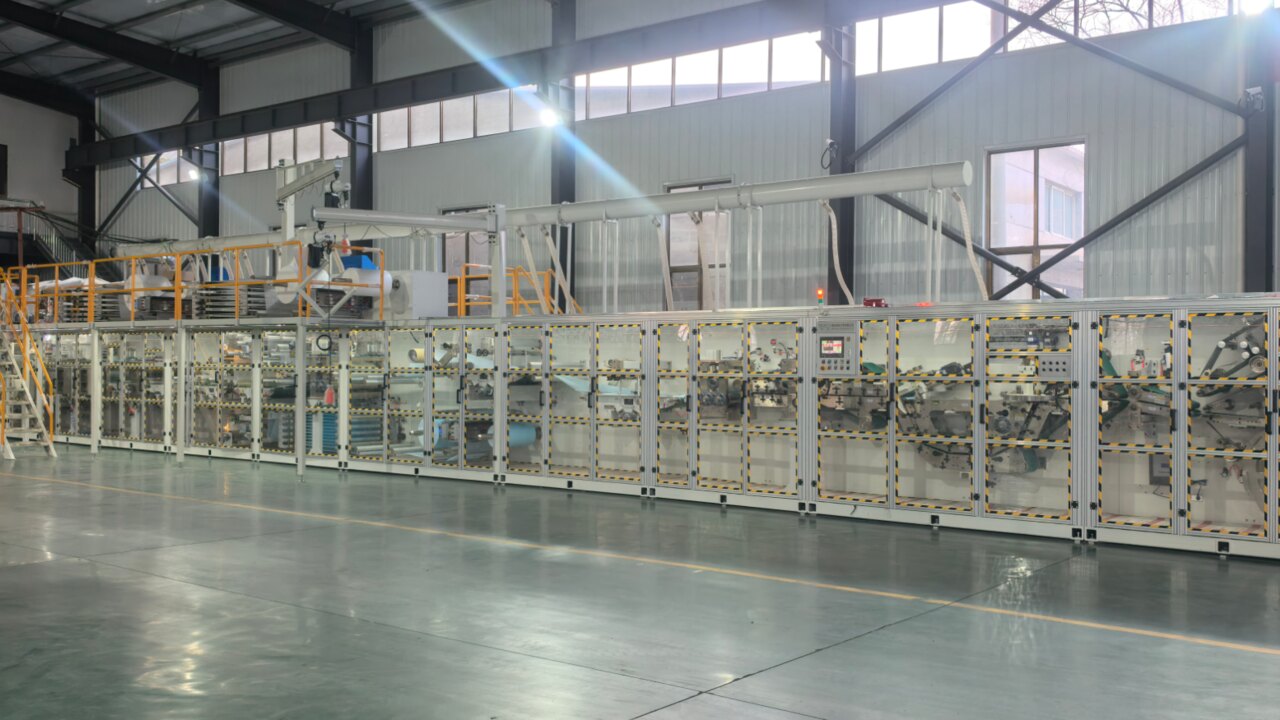

GR-CD350-SF underpad and pet pad lineFULL SERVO

GR-CD350-SF

Underpad & pet pad line

A configurable line for underpads, maternity pads and pet training pads, with a range of product dimensions. Each product type is configured and confirmed separately.

Design speed
350pcs/min
Stable ref. · ≈900 mm
300–320pcs/min
Installed capacity
≈270kW
Envelope · weight
30×6.5×3.7m · ≈58 t
Full line details

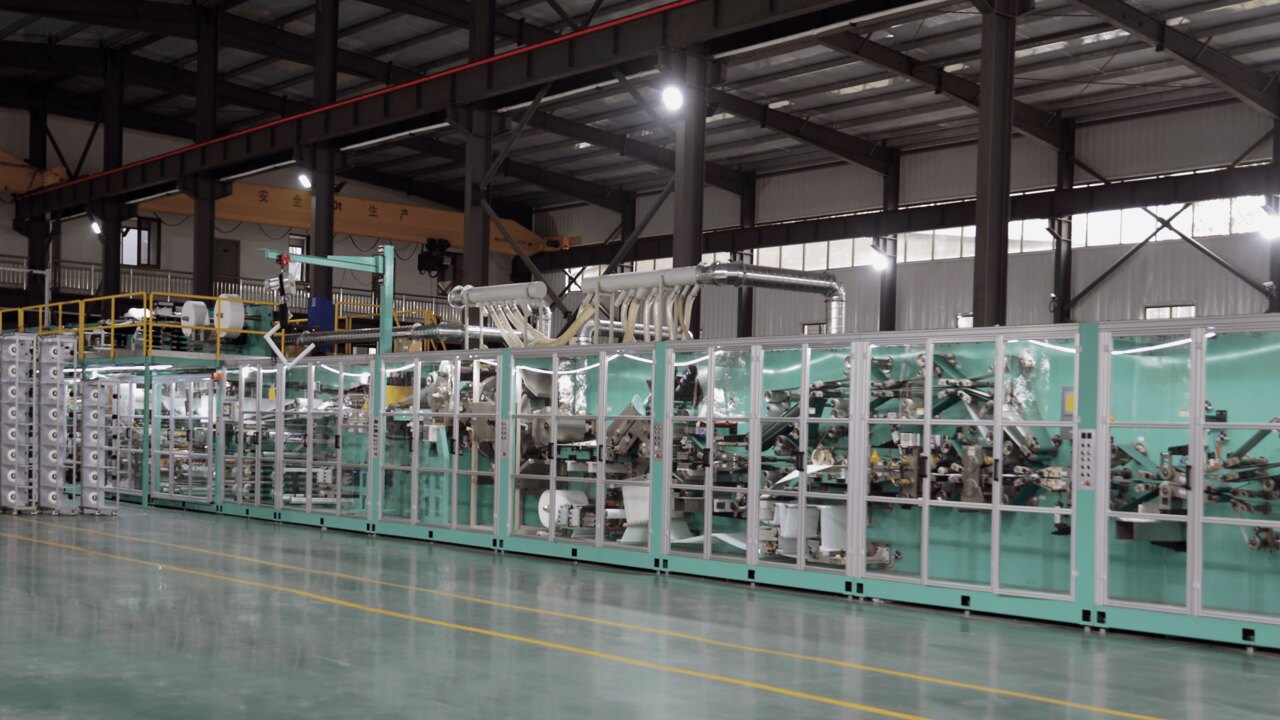

GR-JQK450-SF4 menstrual pants lineFULL SERVO

GR-JQK450-SF4

Menstrual pants line

Full-servo converting for menstrual, overnight and maternity-care pants. Each product is configured and approved separately.

Design speed
450pcs/min
Stable reference
390–420pcs/min
Installed capacity
≈480kW
Envelope · weight
47×9×5m · ≈98 t
Full line details

Installed capacity is not running energy consumption. For the GR-CLK450-SF4 it includes glue equipment and the envelope excludes packaging equipment; for the other lines, what is included is confirmed for each configuration. Allow extra space for materials, access and service. The GR-CD350-SF stable reference applies to a product length of about 900 mm. Reference speeds are not a guarantee for every product — performance and trial conditions are agreed in the technical specification.

A better brief, a more useful proposal

Six details to start with.

You don't need all six on day one. The more of them we have, the faster the manufacturer can prepare a proposal that fits your plant.

01

Your product

Product type, sizes and a reference sample or drawing.

02

Your output

Target pieces per minute and planned operating shifts.

03

Your space

Workshop length, width, clear height and access routes.

04

Your utilities

Voltage, frequency and available compressed air.

05

Your packaging

Manual packing, automatic stacking or downstream integration.

06

Your timeline

Target date for production and key project milestones.

Planning a line

Questions worth asking early.

Is design speed the same as production output?

No. Design speed is a machine reference. Sustainable output depends on the agreed product size, materials, configuration and quality criteria. Confirm the operating target and trial conditions in the technical agreement.

What changes when I change product size?

HMI recipe adjustment is one part of changeover. Material widths, threading, tooling and downstream settings may also change. The required work is confirmed for your selected products.

What should I prepare for the workshop layout?

Usable length, width and clear height, access routes, power supply and available utilities. A machine envelope alone does not include all storage, service clearances or auxiliary equipment.

How are testing, installation and training arranged?

We coordinate these with the equipment manufacturer. Trial materials, acceptance criteria, responsibilities, travel costs and training scope are agreed for each project.

Can I see the line running before I decide?

Tell us what you want to see — a module, a changeover, the floor space. We'll check with the manufacturer and film what we can on our next visit. A factory visit can also be discussed.
